pilo
pilo-EOTBT LED
Housing
Extremely flat and rimless recessed luminaire, made of sheet steel. Suitable for ceilings with visible T-rails 24mm. In combination with mounting frame pilo-ER also for cut out ceilings. Bottom of the housing one-piece with hole pattern. Housing powder-coated traffic white (similar to RAL 9016) or black (similar to RAL 9005). Other RAL colouring available on request.
Lighting technology
Direct narrow-wide light distribution. Fully integrated translucent lens optics made of acrylic. For VDU workstations 65°<3000cd/m², UGR ≤ 19 according to DIN EN 12464-1.
Rated life time = L80 B10 50.000h. Light colour: 4000K. Optional: 3000K. Other light colours on request.
Miscellaneous
Electrical connection via three-pole or for dimmable luminaires, five-pole feed-in and connection terminal with plug-in technology, with integrated protective earth connection and unlocking button, suitable for rigid and flexible cables up to 2,5mm².
Read more
Accessories
pilo-ER mounting frame for cut-out ceilings must be ordered separately.
| Type | Colour | Luminous flux (lm) | Dimensions (mm) (LxWxH) | Item number | Downloads | |
|---|---|---|---|---|---|---|
| pilo-EOTBT | ||||||
| pilo-EOTBT LED 4800 840 ET vw | tw RAL 9016 | 4803 | 618 x 618 x 37 | 7683044100 | 228.00 € | Download |
| pilo-EOTBT LED 4800 840 ET sw | bk RAL 9005 | 4803 | 618 x 618 x 37 | 7683044104 | 251.00 € | Download |
| pilo-EOTBT LED 4800 840 DALI vw | tw RAL 9016 | 4803 | 618 x 618 x 37 | 7683046600 | 260.00 € | Download |
| pilo-EOTBT LED 4800 840 DALI sw | bk RAL 9005 | 4803 | 618 x 618 x 37 | 7683046604 | 283.00 € | Download |
| pilo-EOTBT/6 | ||||||
| pilo-EOTBT/6 LED 4800 840 ET vw | tw RAL 9016 | 4803 | 593 x 593 x 37 | 7683044110 | 228.00 € | Download |
| pilo-EOTBT/6 LED 4800 840 ET sw | bk RAL 9005 | 4803 | 593 x 593 x 37 | 7683044114 | 251.00 € | Download |
| pilo-EOTBT/6 LED 4800 840 DALI vw | tw RAL 9016 | 4803 | 593 x 593 x 37 | 7683046610 | 260.00 € | Download |
| pilo-EOTBT/6 LED 4800 840 DALI sw | bk RAL 9005 | 4803 | 593 x 593 x 37 | 7683046614 | 283.00 € | Download |
Download
Download
Download
Download
Download
Download
Download

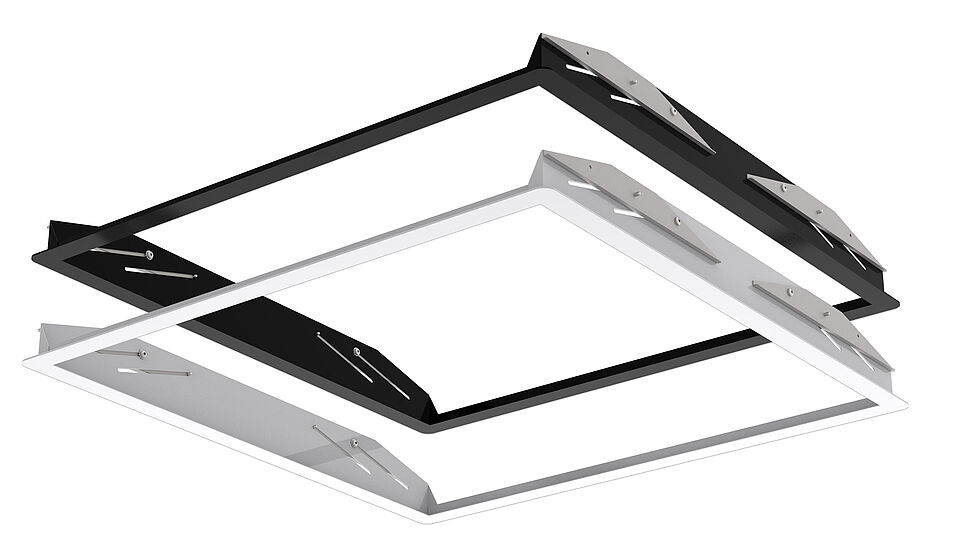

pilo-ER
Mounting frame for cut out ceiling
